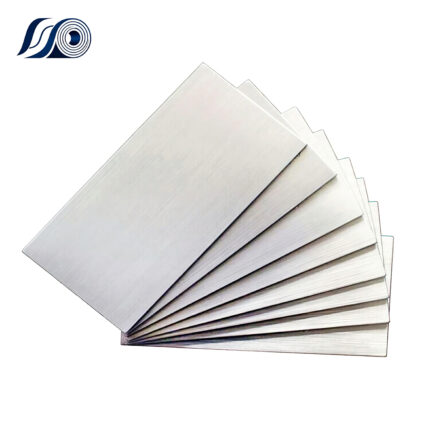

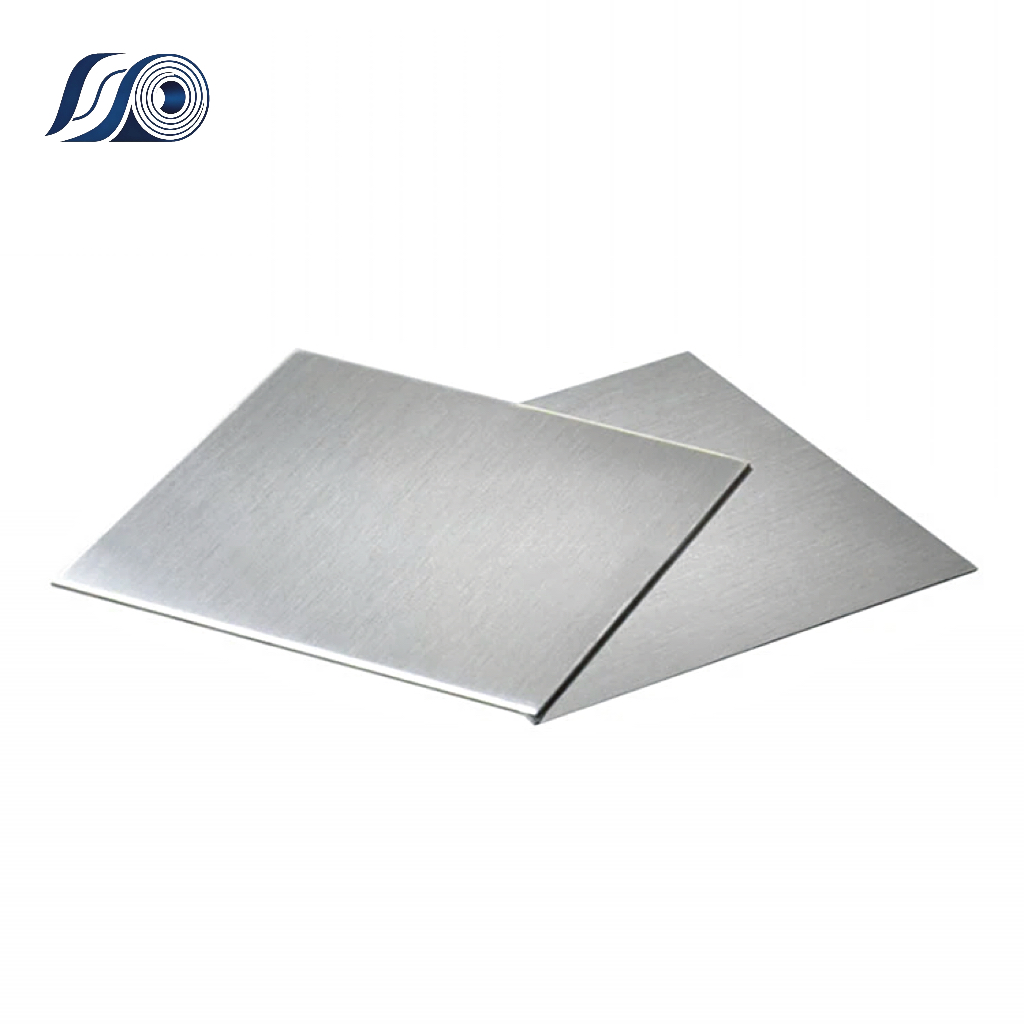

316 Stainless Steel Plate
316 stainless steel plate is a high‑grade austenitic stainless steel material renowned for its superior corrosion resistance, particularly against chloride‑induced pitting and crevice corrosion, as well as excellent heat resistance and good formability. It is primarily composed of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with the addition of molybdenum being the key factor that distinguishes it from 304 and significantly enhances its resistance to aggressive media. It is suitable for a wide range of demanding applications, including marine engineering, chemical processing equipment, pharmaceutical production machinery, medical surgical instruments, heat exchangers, and high‑end building facades in coastal areas. Its exceptional durability and stable performance make it the material of choice for critical environments where long‑term reliability is essential.
Key Attributes
| Product Name | 316 Stainless Steel Plate/Sheet |
| Standard | ASTM,JIS,DIN,GB,AISI,DIN,EN |
| Technique | Cold drawn, Hot rolled, Cold rolled and Others. |
| HS Code | 7219340000 |
| Width | 6-12mm or Customizable |
| Thickness | 0.3-120mm or Customizable |
| Length | 1000 – 6000mm or Customizable |
| Surface Treatment | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| Origin | China |
| Shape | Round or Rectangle.Customizable |
| Delivery Time | 7-15 days, depending on the situation and quantity |
| After-sales Service | 24 hours online |
| Production Capacity | 100000 Tons/Year |
| Price Terms | EXW, FOB, CIF, CRF, CNF or Others |
| Loading Port | Any port in China |
| Payment Term | TT, LC,Cash, Paypal, DP, DA,Western Union or Others. |
| Application | 1.Marine engineering: Ship hulls, seawater pipelines, offshore equipment, yacht fittings, etc. |
| 2. Chemical industry: Corrosion-resistant reaction vessels, acid-base storage tanks, chemical pipelines, desalination equipment, etc. | |
| 3. Food processing: Seafood processing equipment, brine storage containers, high-corrosion processing tables, etc. | |
| 4. Medical equipment: Implant parts, sterile medical utensils, surgical instruments, medical disinfection tanks, etc. | |
| 5. Architectural decoration (coastal areas): Seaside curtain walls, coastal railings, exterior wall panels resistant to salt fog, etc. | |
| 6. Petrochemical equipment: Oil and gas conveying pipes, crude oil storage tanks, waste gas treatment equipment, etc. | |
| 7. Water treatment: Sewage treatment tanks, reverse osmosis equipment, salt water filtration components, etc. | |
| 8. Pharmaceutical manufacturing: Drug mixing tanks, sterile production machinery, lab corrosion-resistant test benches, etc. | |
| Packaging | Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request. |
| Tolerance | ±1% |
| MOQ | 3 tons |
Composition of Stainless Steel
Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | – | – | 0.08 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | – | ≤0.25 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | – | ||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | – | ||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | – | ||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | – | ||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | – | ||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | ||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | ||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | – | ||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | – | |||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | ||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | ||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | |
| INCONEL028 | ≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | |
| MONEL400 | ≤0.30 | ≤0.5 | ≤2.00 | – | ≤0.024 | – | ≥63.0 | – | ≤34.0 | |
| INCONEL800 | ≤0.10 | ≤1.00 | ≤1.50 | – | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | – | ≤0.75 |
Surface Selection

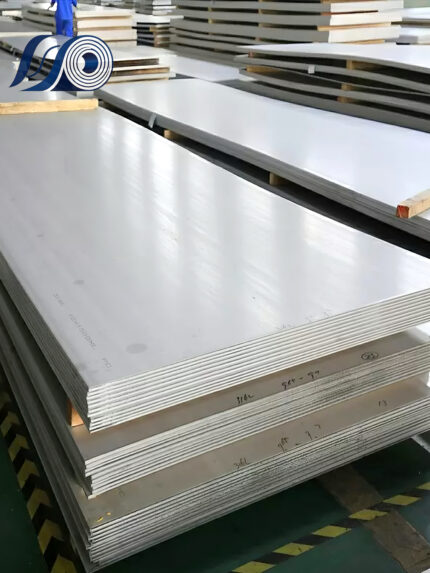

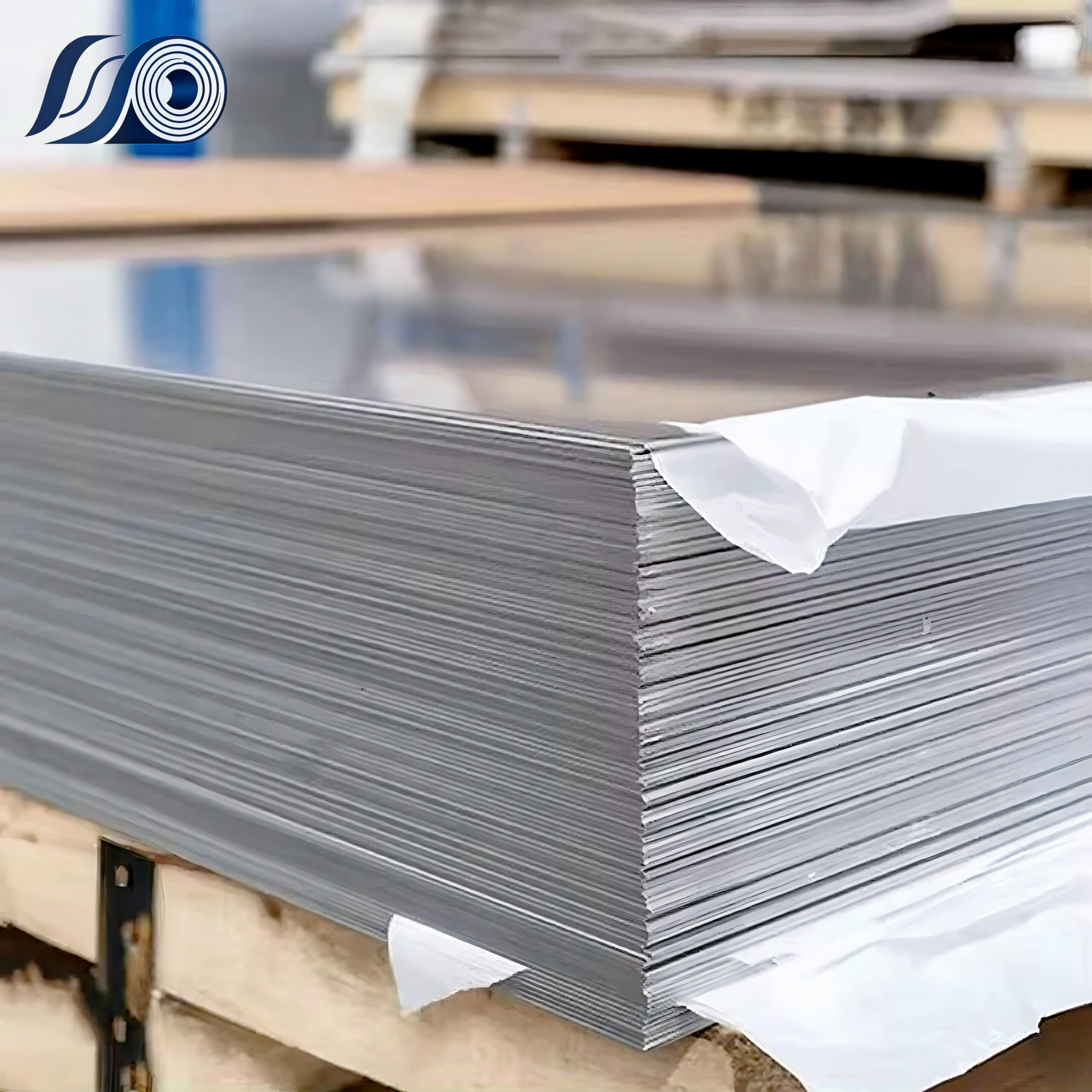

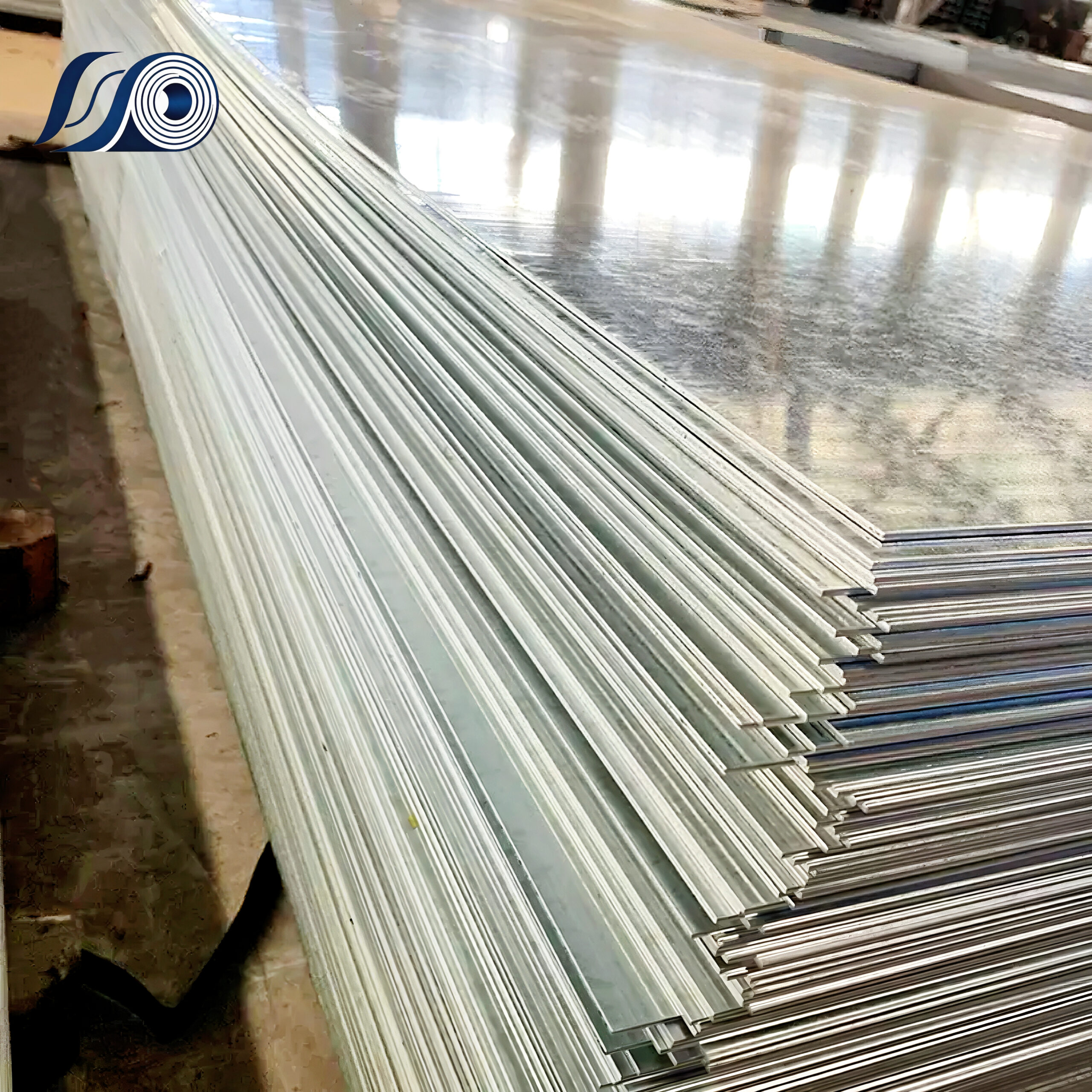

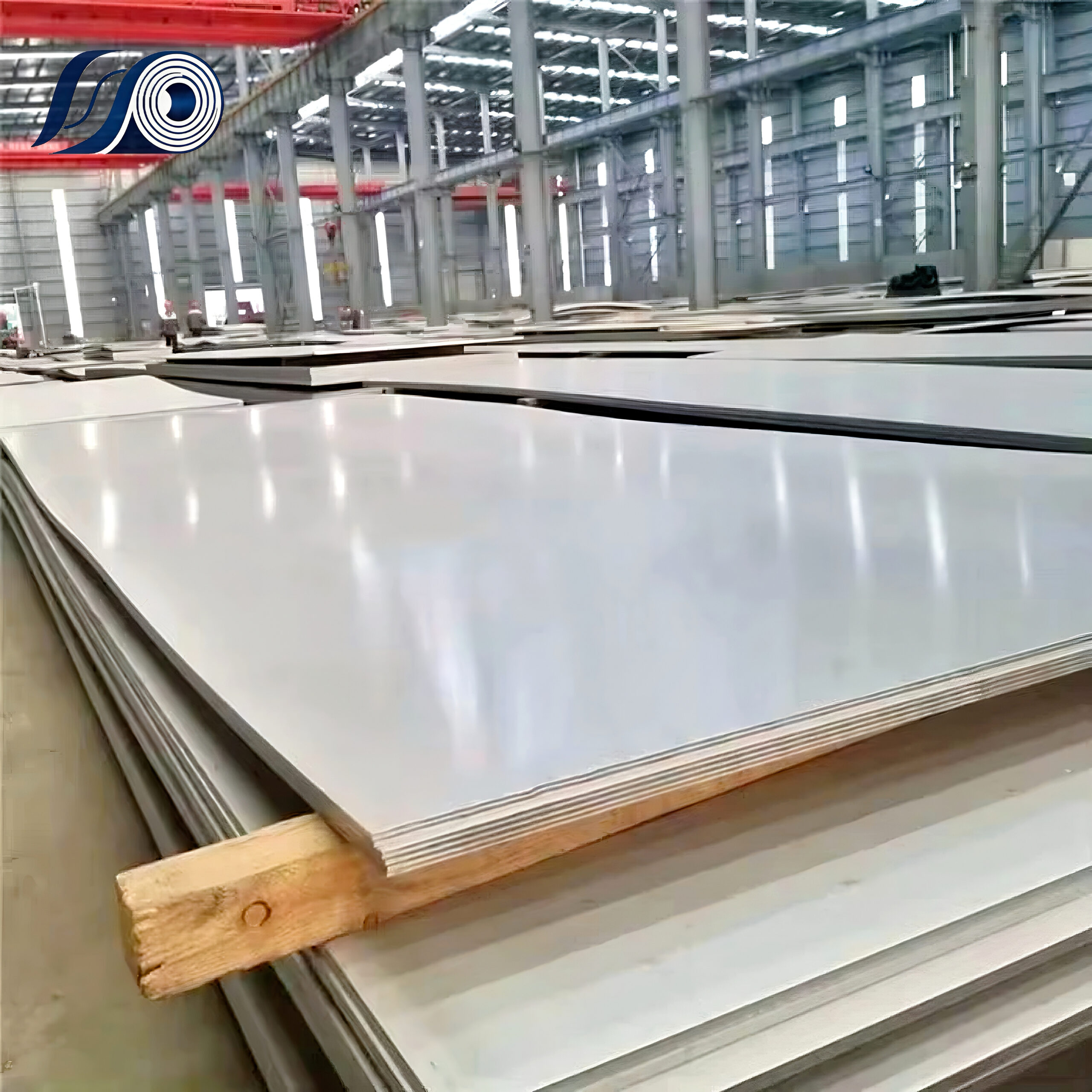

Product Display
Product Application
Product Packaging
